- Double crank press with two eccentric shafts arranged in parallel rows.The rotating rods and its assembly keep a superior balance at any timing.
- Consequently, thrust vector is eliminated from the inertial force of the slide (top).
- The pins,filled in front-back direction between the slide and the connecting rod, leave beky little room for vibration of theslide longitudinally.

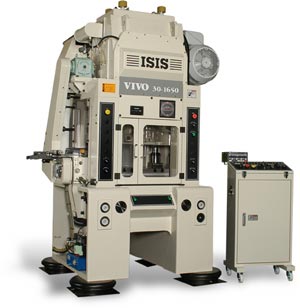

VIVO 30-1650
 |
20-2000 | 20-1650 | 20-1200 | 30-2000 | 30-1650 | 30-1200 | |
| Capacity | kN | 200 | 300 | ||||
| Crankshaft | pt | 2 (Twin power) | |||||
| StrokeLength | mm | 10 | 15 | 10 | 15 | ||
| max.Strokes/ minutes max |
SPM | 2000 | 1650 | 1200 | 2000 | 1650 | 1200 |
| Die height | mm | 210 | 207 | 207 | 225 | 223 | 223 |
| SlideAdjustment | mm | 5 | 8 | ||||
| SlideArea | mm | 350*210 | 500*260 | ||||
| Bolster | mm | 350*390*80 | 500*500*120 | ||||
| BedOpening | mm | 230*50 | 400*60 | ||||
| SideOpening | mm | 220 | 240 | ||||
| Upper Die Weight | kg | 30-50 | 30-50 | ||||
| Exolusively Designed Feeding Device |
- | VG20H | VG25(T) | VG20H | VG25(T) | ||
| Main Motor | kW | 18.5 | 15 | 11 | 22 | 18.5 | 15 |
| Weight | ton | 5.5 | 6 | ||||
