Top>Models Specification>N series
- High performance model in pursuit of cost performance ratio to meet the needs of the age.
- Adopting well proven mechanism used in the U Series. Dynamic balancing design with 2 plungers and 4 post guides.

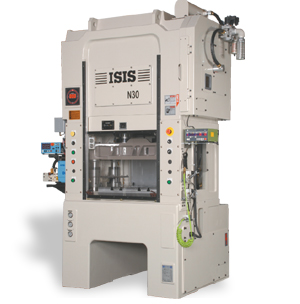

N30
N30
- High costperformance version of U40L.
- Straight side, double crankshaft,post guided press.
N40L
N40L
- High costperformance version of U40L.
- Straight side, double crankshaft, post guided press.
N60
N60
 |
N30 | N40Ⅱ | N40Ⅲ | N40L | N60 | |||||
| Capacity | kN | 300 | 400 | 600 | ||||||
| StrokeLength | mm | 25 | 30 | 40 | 30 | 40 | 30 | 40 | 30 | 40 |
| max.Strokes/minutes | SPM | 1000 | 600 | 500 | 600 | 500 | 600 | 500 | 600 | 500 |
| Die height | mm | 240 | 235 | 230 | 240 | 235 | 240 | 235 | 300 | 295 |
| SlideAdjustment | mm | 30 | 40 |
45 | 40 | |||||
| SlideArea | mm | 650*340 | 600*320 | 650*310 | 700*400 | 840*500 | ||||
| Bolster | mm | 650*450*93 | 600*450*90 | 650*500*90 | 700*500*120 | 840*600*120 | ||||
| BedOpening | mm | 480*80 | 400*80 | 540*80 | 550*70 | 650*130(200) | ||||
| MainMoter | kW | 7.5 | 7.5 | 11 | 7.5 | 11 | ||||
| Weight | ton | 5.5 | 7 | 6.5 | 8.5 | 9 | ||||
| PaintColor (Body) | - | Japan Paint Manufactures Association A25-75B | ||||||||
| PaintColor (Slide) | - | Japan Paint Manufactures Association A22-50B | ||||||||
The press in photo includes some options.
Please ask us to confirm a detailed specification.
| Standard accesories |
Inverter motor |
| Air clutch & brake | |
| Dynamic balancer | |
| Pushbutton-type slide adjuster | |
| Digital die height meter (1/100mm) |
|
| Digital crank angle indicator | |
| Safety door (front, rear) | |
| Forced-feed lubricator | |
| Waste oil tank (2liter) | |
| Vibration absorber | |
| Air gun (1set) | |
| Arrangement for stopping at a fixed point |
|
| Digital cam | |
| Electric leak breaker (NFB) | |
| Over current detector | |
| LCD Production counter (6-digit) |
|
| LCD Preset counter (6-digit) |
|
| Safety connectors (2 for emergency stop and 2 for normal stop,12VDC) |
|
| Material end detecting switch | |
| Drip type punching oil supplier with 2-liter tank |
|
| Power outlets (100V,200V) |
|
| Speed meter | |
| Ammeter | |
| Hydraulic lock type slide adjusting screw |
| Optional | Flywheel, left |
| Intermittent cutting device | |
| Index slewing gear | |
| Oil mixing spray | |
| Punching oil supplier (Electric pump) |
|
| Air ejector | |
| Hydraulic die clamper | |
| Hydraulic die lifter | |
| Die arm | |
| Aluminium alloy ram plate | |
| Ram plate | |
| Sub-bolster | |
| Feed reversing device | |
| Noise insulator | |
| Die area lighting | |
| Photo-electric safety device | |
| Pendant control switch station | |
| Hour meter | |
| Auto die height system | |
| Automated path line system | |
| Cycle counter | |
| Safety stop device | |
| Die height detector | |
| Auto die changer | |
| Digital speed meter | |
| Digital Ammeter | |
| Lubrication heat & cool equipment |
|
| Thermal control device | |
| Programmable controller sequencer |
|
| Character display |
